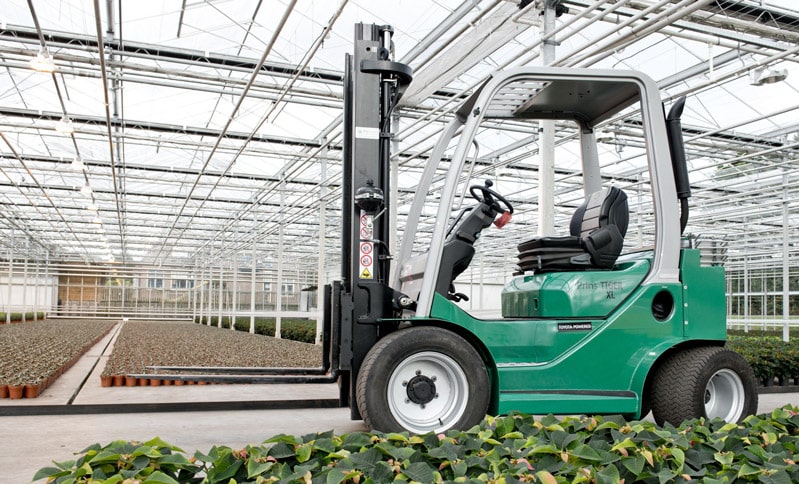

Prins Tiger XL 1.2 Diesel
Additional information
| Hefcapaciteit | |
|---|---|
| Unladen weight | |
| Load centre of gravity | |
| Mast tilt front/rear | |
| Type of fork carriage | |
| Transmission | |
| Brandstof | |
| Make/type of engine | |
| Engine model | |
| Engine power | |
| Speed | |
| Tyres front - Tractor profile | |
| Tyres front - Lawn tread | |
| Tyres rear | |
| Size A | |
| Size B | |
| Size C | |
| Size D | |
| Size E | |
| Size F | |
| Size G | |
| Size H | |
| Size I | |
| Size J | |
| Size K | |
| Size L | |
| Servicenr | N/A |
Description
Specifications
 |  | | ||||||||
| Model | | Tiger XL | | ||||||
| Type | | 1.0 | | 1.2 | | 1.5 | | 1.8 | |
| Lifting capacity (kg) | | 1000 | | 1200 | | 1500 | | 1800 | |
| Unladen weight (kg) incl. counterweight | | 2360 | | 2460 | | 2660 | | 2980 | |
| Unladen weight (kg) excl. counterweight | | 2060 | | 2060 | | 2260 | | 2580 | |
| Load centre of gravity (mm) | | 500 | | ||||||
| Mast tilt front/rear | | 8°/9° | | ||||||
| Type of fork carriage | | FEM 2a | | ||||||
| Transmission | | torque converter | | ||||||
| Fuel | | Diesel | | Gas | | ||||
| Engine | | Toyota | | Toyota | | ||||
| Engine model | | 1DZ-III (V) | | 4Y-ECS (V) | | ||||
| Power (kW) | | 18 | | 18 | | ||||
| Speed (km/h) | | 16 (optional 19 km/h) | | 22 km/h | | ||||
| ||||||||||
| Tyres for – Tractor profile | | 320/60-12 | | 320/60-12 | | ||||
| Tyres for – Lawn profile | | 295-50×15 | | 315/50-12 | | ||||
| Tyres behind | | 24-13×12 | | 24-13×12 | | ||||
| Size A (mm) | | 3170 | | ||||||
| Size B (mm) | | 2220 | | ||||||
| Size C (mm) | | 410 | | ||||||
| Size D (mm) | | 1630 | | ||||||
| Size E (mm) | | 2440 | | ||||||
| Size F (mm) | | 710 | | ||||||
| Size G (mm) | | 320 | | ||||||
| Size H (mm) | | 200 | | ||||||
| Size I (mm) | | 1150 | | ||||||
| Size J (mm) | | 2200 | | ||||||
| Size K (mm) | | 1320 | | ||||||
| Size L (mm) | | 2650 | | ||||||
