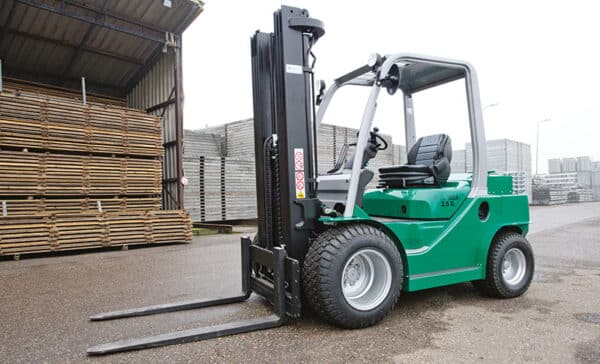

Prins Tiger XL 2.5 Diesel
Additional information
| Hefcapaciteit | |
|---|---|
| Unladen weight | |
| Load centre of gravity | |
| Mast tilt front/rear | |
| Type of fork carriage | |
| Transmission | |
| Brandstof | |
| Make/type of engine | |
| Engine model | |
| Engine power | |
| Speed | |
| Tyres front - Tractor profile | |
| Tyres front - Lawn tread | |
| Tyres rear | |
| Size A | |
| Size B | |
| Size C | |
| Size D | |
| Size E | |
| Size F | |
| Size G | |
| Size H | |
| Size I | |
| Size J | |
| Size K | |
| Size L | |
| Servicenr | N/A |
Description
Specifications
 |  | | ||||
| Model | | Tiger XL | | ||
| Type | | 2.5 | | ||
| Lifting capacity (kg) | | 2500 | | ||
| Unladen weight (kg) incl. counterweight | | 3900 | | ||
| Unladen weight (kg) excl. counterweight | | 3400 | | ||
| Load centre of gravity (mm) | | 500 | | ||
| Mast tilt front/rear | | 8°/9° | | ||
| Type of fork carriage | | FEM 2a | | ||
| Transmission | | torque converter | | ||
| Fuel | | Diesel | | Gas | |
| Engine | | Toyota | | Toyota | |
| Engine model | | 1DZ-III (V) | | 4Y-ECS (V) | |
| Power (kW) | | 18 | | 18 | |
| Speed (km/h) | | 16 (optional 19 km/h) | | 22 km/h | |
| ||||||
| Tyres for – Tractor profile | | 31×15.50-15 | | ||
| Tyres for – Lawn profile | | 10.0/75-15.3 | | ||
| Tyres behind | | 26-12×12 | | ||
| Size A (mm) | | 3170 | | ||
| Size B (mm) | | 2270 | | ||
| Size C (mm) | | 540 | | ||
| Size D (mm) | | 1700 | | ||
| Size E (mm) | | 2780 | | ||
| Size F (mm) | | 730 | | ||
| Size G (mm) | | 300 | | ||
| Size H (mm) | | 200 | | ||
| Size I (mm) | | 1170 | | ||
| Size J (mm) | | 2220 | | ||
| Size K (mm) | | 1520/1300 | | ||
| Size L (mm) | | 3300 | | ||
