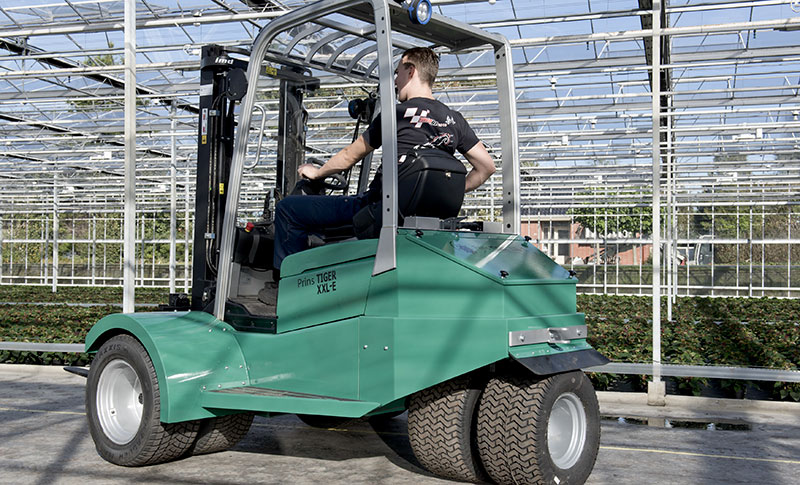

Prins Tiger XXL-E 1.0
Additional information
| Hefcapaciteit | |
|---|---|
| Weight excl. standard battery | |
| Weight of standard battery | |
| Weight excl. Li-ion battery | |
| Li-ion battery weight | |
| Load centre of gravity | |
| Mast tilt front/rear | |
| Type of fork carriage | |
| Transmission | |
| Brandstof | |
| Make/type of engine | |
| Engine model | |
| Engine power | |
| Speed | |
| Tyres front - Tractor profile | |
| Tyres front - Lawn tread | |
| Tyres rear | |
| Tyres for | |
| Size A | |
| Size B | |
| Size C | |
| Size D | |
| Size E | |
| Size F | |
| Size G | |
| Size H | |
| Size I | |
| Size J | |
| Size K | |
| Size L | |
| Servicenr | N/A |
Description
Specifications
 |  | | ||||
| Model | | Tiger XL-E | | Tiger XXL-E | |
| Type | | 1.0 | | 1.0 | |
| Lifting capacity (kg) | | 1000 | | ||
| Weight excl. standard battery (kg) | | 1665 | | ||
| Weight standard battery (kg) | | c. 875 – ?? | | ||
| Weight excl. Li-ion battery (kg) | | 1785 | | ||
| Li-ion battery weight (kg) | | ca. 440 – ?? | | ||
| Load centre of gravity (mm) | | 500 | | ||
| Mast tilt front/rear | | 8°/9° | | ||
| Type of fork carriage | | FEM 2b | | ||
| Transmission | | automatic | | ||
| Fuel | | electro | | ||
| Engine | | Cesab | | ||
| Engine model | | S2 | | ||
| Power (kW) | | 6 | | ||
| Speed (km/h) | | 18 | | ||
| ||||||
| Tyres for – Lawn profile A | | 295-50×15 | | ||
| Tyres for – Lawn profile B | | 27×12-15 | | ||
| Tyres behind | | 24-13×12 | | ||
| # Tyres for | | 2 (single) / 4 (double) | | 4 (double) | |
| Size A (mm) | | 3200 | | ||
| Size B (mm) | | 2600 | | ||
| Size C (mm) | | 450 | | ||
| Size D (mm) | | 1750 | | ||
| Size E (mm) | | 2500 | | ||
| Size F (mm) | | 750 | | ||
| Size G (mm) | | 380 | | ||
| Size H (mm) | | 240 | | ||
| Size I (mm) | | 1200 | | ||
| Size J (mm) | | 2240 | | ||
| Size K (mm) | | 1340 / 2020 | | 2020 | |
| Size L (mm) | | 2400 | | ||
